Mold Temperature Control Units



As one of the largest direct suppliers of Temptek mold temperature control units, Telar can provide you the number one selling Veteran line of mold temperature controls at the lowest prices. We have many of these water units in stock for same day shipping in both the LS model and LX model with modulating valve.

All Temptek water units have stainless steel cabinetry, an upright twin tank design, bronze impeller and an energy efficient pump motor. The LX model features a modulating valve which will maintain temperature and extend the life of your seals.

Allll units come with a full two year factory warranty and the following models are available with many in stock. Both 230 volt and 460 volt units are available.





Solenoid Valve	Current Price	Modulating Valve	Current Price
VT-275-LS	call for best pricing	VT-275-LX	call for best pricing
VT-2100-LS	call for best pricing	VT-2100-LX	call for best pricing
VT-2150-LS	call for best pricing	VT-2150-LX	call for best pricing
VT-2200-LS	call for best pricing	VT-2200-LX	call for best pricing
VT-2300-LS	call for best pricing	VT-2300-LX	call for best pricing

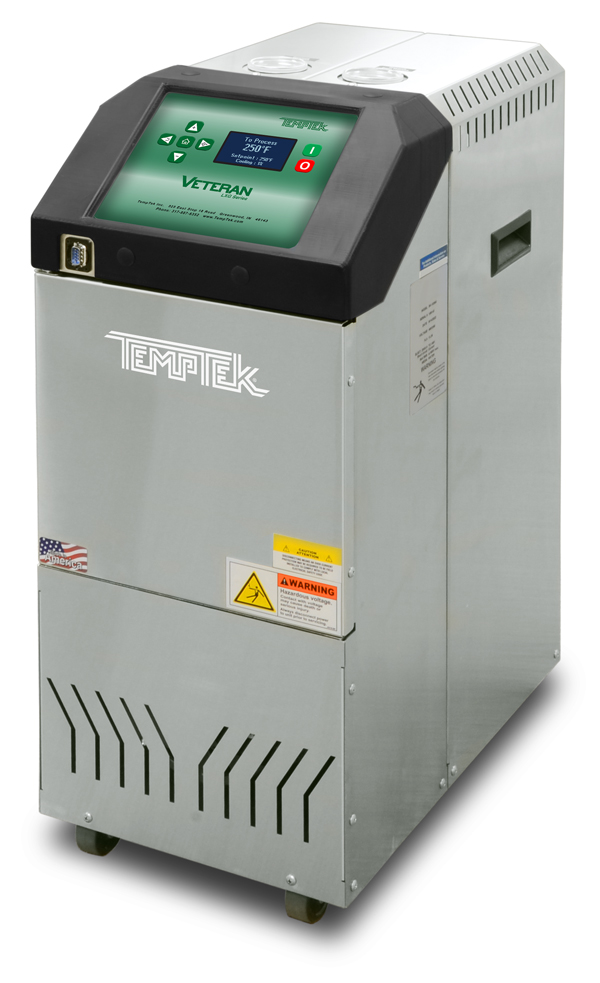

Veteran LX Series Mold Temperature Control Unit

• Stainless Steel Cabinetry
• LX Control Instrument
• Modulating Cooling Valve
• Operating Temperatures to 250 ̊F
• Heaters to 16 KW and Pumps to 3 HP
• Custom Cast Pump & Tank Assembly

The Veteran LX mold temperature controller offers an enhanced microprocessor instrument and modulating cooling valve for more precise process temperature
control packaged in a stainless steel cabinetry for a pleasing appearance.  All components, such as pumps, cylinders, contactors, valves and instruments are built for long term service and minimal maintenance. Veteran temperature controllers fit easily into any applications that require high level control of process temperature.





STRAIGHT-LINE TEMPERATURE CONTROL
The new modulating cooling valve precisely meters the right amount of cooling water to keep the process temperature within 1/2° of the setpoint. No pump seal or heater damage from the pressure spikes of water hammer.



FRIENDLY MICROPROCESSOR CONTROL
Large temperature display and digital selection of setpoint. Indicator lights for Power, Pump, Heat and Cool.



TWIN TANK SYSTEM
Separate tanks for heating and cooling gives greater temperature control and simplifies service and maintenance.



CUSTOM PUMP CASING
The custom pump casing produces more flow at less HP than conventional pumps for greater efficiency and energy savings.





STANDARD FEATURES AND OPTIONS:



UNIT CONSTRUCTION
• Stainless steel enclosure panels with lift-off mechanical cover and hinged electrical cabinet door
• Upright design on casters
• NPT female connections
• Flow-through cabinet ventilation

CIRCULATING SYSTEM
• Custom cast pump casing
• Custom cast cylinder system
• Modulating cooling valve
• Flange mounted dual voltage heater
• Pump seal flush line



INSTRUMENTATION
• Microprocessor based controller
• Large and bright temperature display in °F or °C
• Status indicators for Pump, Heat, Cool, Power
• On / off rocker switch
• Digital selection of setpoint
• Process pressure gaugesELECTRICAL
• Pump motor starter
• Transformer
• Factory installed 10ʼ power cord

LIMITS
• Low water supply pressure
• Motor overload
• Instrument fuse
• Pressure relief valve
• High temperature



WARRANTY
• 2 years parts and labor



OPTIONS
• Closed circuit kit
• Dual zone kit
• Non-ferrous construction
• Mold purge









Veteran LS Series Mold Temperature Control Unit

• Stainless Steel Cabinetry
• LS Control Instrument
• Solenoid Cooling Valve
• Operating Temperatures to 250 ̊F
• Heaters to 16 KW and pumps to 3 HP
• Custom Cast Pump & Tank Assembly



The VT Series is the new ʻold soldierʼ for mold temperature control. Designed by skilled and experienced Veteran Engineers that know the industry. This temperature controller is competent of your needs, built for long term dependable, full time operations. For precise mold temperature control, no other controller beats the VT Series model.



TANK CONSTRUCTION:
• Twin tanks – separate heating and cooling cylinders
• Cast iron material
• Machined process connections
• Flange mounted to pump casing
• Thermoformed cover panel
PUMP:
• Cast iron casing – custom design for increased flow
• Bronze pump impeller
• Pump seal flush
• Stainless steel pump motor shaft
COOLING VALVE:
• 3/8” solenoid valve
• Microprocessor controlled
• Integral to cooling cylinder
• Field serviceable
HEATER:
• Flanged bolt-in mount
• Incoloy sheath
• Mercury heater contactor
CABINETRY:
• Stainless steel
• Hinged electrical cabinet door
• Lift-off mechanical cover
• Portable, on casters
• Process pressure gauges
LIMIT DEVICES:
• Water supply pressure switch
• Motor overloads
• Pressure relief valve
• High temperature limit
• Fused control circuit

ELECTRICAL:
• Process pump motor starter
• Fused transformer
• 10ʼ power cord installed
ʻLSʼ SERIES CONTROLLER:
• Continuous to process temperature display
• Selectable setpoint temperature display
• Status indicators for power on, pump on, heat on, cool on
• On / off rocker switch
WARRANTIES:
• 2 year controller
• 2 year cooling valve
• 2 year heater
• 2 year mechanical



OPTIONS:
• Dual zone dolly with water manifold or with electrical junction box
• Stacking stand with water manifold or with electrical junction box
• Mold purge kit
• Non ferrous tanks
• Bronze pumps and/or piping
• Total non ferrous units
• Closed circuit designs
• Audible alarm
• Visual/audible alarm beacon



Ls Series Mold Temperature Control Unit Specifications:
